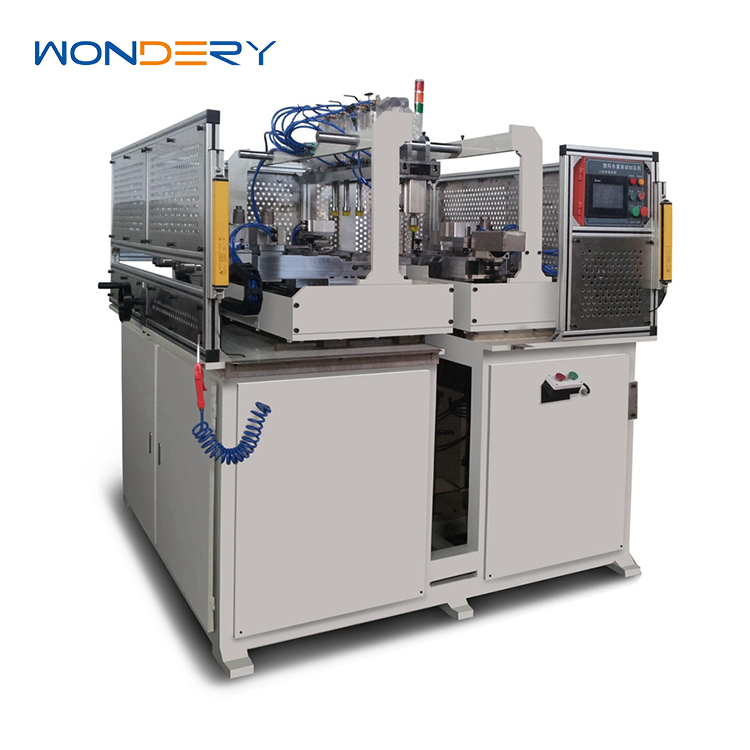

Servo Pneumatic Radiator Clinching Machine 20Ton Force PLC Control

Brand Name:	WONDERY
MOQ:	1
prezzo:	$30,000

Detail Information

Descrizione del prodotto

Detail Information

Place of Origin:

Fujian, China

Weight:

50 KG

Core components:

PLC, motor

Header distance:

400-1000mm

Header length:

300-1000mm

Control system:

PLC control and touch screen

Operation mode:

automatic crimping and manual loading and unloading

Power type:

servo and pneumatic

Clinching cycle:

25 cores per hour

Clinching force:

20Ton

Core size:

400-1000mm

Productivity:

about 25 cores per hour

Working mechanism:

servo and pneumatic Integral method

Dimensions:

2000*2000*2100mm

Net weight:

3200 kg

Machine type:

Compressor

Evidenziare:

20Ton servo pneumatic clinching machine

PLC control radiator fin machine

pneumatic radiator clinching machine with warranty

Descrizione del prodotto

Wondery Top Selling Servo and Pneumatic Power Plastic Tank Radiator Clinching Machine

Product Specifications

Attribute	Value
Weight (KG)	50
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	PLC, motor
Warranty	1 Year
Header to Header Distance	400-1000mm
Header Length	300-1000mm
Control System	PLC control and touch screen
Operation	Automatic crimping and manual loading/unloading
Clinching Machine Power	Servo and pneumatic
Clinching Cycle	About 25 cores per hour
Clinching Force	20Ton

Product Application

This high-quality plastic tank clinching machine for 4 sides is designed for crimping the teeth of header plates and locking the plastic tank tight to the core body. It creates a sealed space between the crimped plastic tank, sealing gasket, and header plate. The servo-type machine handles products of various specifications with its long-side header crimping mechanism and end crimping mechanism.

Technical Specifications

Parameter	Unit	Value
Core Size (Header to header distance)	mm	400-1000mm
Header length	mm	400-1000mm
Productivity	cores/hour	~25
Working Mechanism	Servo and pneumatic integral method
Overall Dimensions (L×W×H)	mm	2000×2000×2100
Machine Weight	kg	3200

Key Features

PLC-controlled operation with touch screen interface for setting clinching programs
Touch screen displays working status and stores radiator crimping parameters
Hydraulic-powered long side header clinching mechanism
Capable of crimping headers at all 4 sides in one cycle
Includes dodge moves and step-forward moves functionality

We also supply semi-automatic separate side radiator clinching machines, manual clinching machines, fast type radiator clinching machines, and hydraulic radiator clinching machines.

Our Services

Pre-Sales Support

Inquiry and consulting support
Sample testing assistance
Factory viewing opportunities

After-Sales Support

Installation and operation training
Overseas engineering support

Packaging & Delivery

Parameter	Value
Size	2000(L) × 2000(W) × 2000(H) mm
Weight	3200 kg
Packaging Details	Plywood box with desiccant bag and wrapping film (no fumigation needed)

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply is determined by customer requirements. We can adjust voltage and phase through a transformer or configure directly to customer specifications for immediate use at the installation site.

2. What information should the customer provide to get an accurate quotation?

Please provide technical requirements, drawings, photos, industrial voltage specifications, and planned production output for an accurate quote.

3. What is the payment term?

Standard terms are 40% down payment, with 60% balance due before delivery (via T/T transfer).

4. What is the delivery time?

Delivery typically occurs 30-60 days after receipt of down payment.
